| Video & Koneksi |
| SDI Video Inputs |
8 |
| SDI Video Outputs |
12 |
| SDI Rates |
1.5G, 3G |
| HDMI Video Output |
1 |
| Total Audio Inputs |
2 × XLR balanced analog audio, 1 × BNC 32-channel MADI digital audio, 2 × RCA stereo analog audio, 1 × 5-pin XLR Talkback |
| Total Audio Outputs |
4 × 1/4-inch Jack analog audio, 1 × BNC 64-channel MADI digital audio hingga 50 active channels, 1 × 5-pin XLR Talkback |
| SDI Audio Inputs |
4-channel embedded audio pada seluruh SDI input |
| SDI Audio Outputs |
2-channel embedded audio pada seluruh SDI output |
| Timecode Connections |
1 × BNC In, 1 × BNC Out |
| Reference Input |
1 × BNC In, 1 × BNC Out, Tri-Sync atau Black Burst |
| Video Input Re-Sync |
Semua 8 input |
| Frame Rate & Format Conversion |
Semua 8 input |
| SDI Aux Outputs |
2 |
| SDI Program Output |
1 |
| Webcam Output |
2 × USB-C, mendukung 720p atau 1080p pada PGM frame rate |
| Multi View Output |
1 × 3G-SDI dan 1 × HDMI |
| Remote |
RJ12 mendukung RS-422 |
| Control Panel Connection |
Ethernet, direct connection antara panel dan chassis atau melalui network |
| Internal Timecode Generator |
Ya |
| Talkback |
RJ45 untuk third-party talkback systems |
| Tally Output |
Ditambahkan melalui koneksi Ethernet ke Blackmagic Design GPI and Tally Interface, tidak termasuk |
| Ethernet |
4 × RJ45 dengan built-in internet network switch, 10/100/1000 Base-T |
| Computer Interface |
2 × USB-C mendukung USB 3.0 untuk external drive recording, webcam output, software control, software updates, dan switcher connection |
| Standar Video |
| SD Video Standards |
Tidak tersedia |
| HD Video Input Standards |
720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| SDI Compliance |
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A dan B |
| Video Sampling |
4:2:2 |
| Color Precision |
10-bit |
| Color Space |
Rec. 709 |
| SDI Auto Switching |
Otomatis mendeteksi antara 1.5G-SDI dan Level A atau Level B 3G-SDI |
| Video Processing |
| Number of Mix Effects Rows |
1 |
| Direct Cross Points |
10 |
| Shifted Cross Points |
20 |
| Crosspoint Button Type |
Tri-Color LED |
| Crosspoint Label |
6 rows × 24 character LCD |
| Preview Transition |
1 |
| Source Select Bus |
1 |
| Dedicated Macro Buttons |
10 + Shift 10 |
| Transition Type Buttons |
5 |
| Key Buttons |
8 |
| AUX Buttons |
12 |
| Fader Bar |
1 |
| Record Buttons |
2 |
| Stream Buttons |
2 |
| DSK Transition Selectors |
6 |
| Fade to Black Buttons |
1 |
| System LCD Displays |
1 |
| Numeric Keypad |
1 |
| 3 Axis Joystick |
1 |
| Upstream Keyers |
4 |
| Downstream Keyers |
2 |
| Advanced Chroma Keyers |
4 |
| SuperSource |
1 |
| DVEs |
2 |
| Linear/Luma Keyers |
7 |
| Transition Keyer (Stinger/DVE) |
1 Stinger, 1 DVE |
| Total Number of Layers |
8 |
| Pattern Generators |
7 |
| Color Generators |
2 |
| Routable Windows |
16 |
| Windows Source Labels |
Ya |
| Tally |
Merah untuk Program dan hijau untuk Preview |
| Talkback Support |
Ya |
| Mix Minus Support |
Ya |
| Streaming & Remote Sources |
| Total Streaming Sources |
Hingga 8 |
| Streaming Source Format |
RTMP video dengan audio melalui local network atau internet connection dari kamera Blackmagic Design yang kompatibel |
| Streaming Source Setup |
Dipetakan ke input melalui ATEM Software Control Settings |
| Direct Streaming |
RTMP melalui Ethernet atau shared internet connection melalui USB-C |
| Remote Camera |
Hingga 8 remote cameras melalui jaringan lokal atau internet |
| Audio |
| Audio Mixer |
58-channel mixer dengan On/Off/Audio-Follow-Video, level & peak metering, master gain control, 6-band parametric EQ, Expander, Gate, Compressor, dan Limiter |
| Analog Audio Input |
2 × XLR balanced analog audio dan 2 × RCA stereo analog audio |
| MADI Input |
1 × BNC, 32-channel MADI digital audio |
| MADI Output |
1 × BNC, 64-channel MADI digital audio hingga 50 active channels |
| Talkback |
5-pin XLR input/output dan RJ45 support untuk third-party talkback systems |
| USB Audio Output |
Digital audio output melalui USB-C dan terintegrasi dengan Fairlight Live |
| Recording |
| Direct Recording |
Recording langsung ke external media melalui USB-C expansion ports atau optional internal M.2 flash memory |
| Program Recording |
Program direkam sebagai H.264 .mp4 pada streaming quality dan ATEM video standard dengan AAC audio |

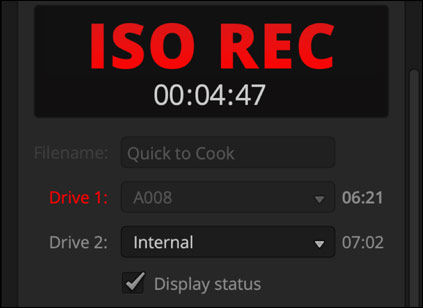

| ISO Recording |
8 × SDI inputs direkam sebagai file H.264 .mp4 terpisah hingga 70 Mb/s pada ATEM video standard dengan AAC audio |
| Audio Recording |
Audio input direkam sebagai file .wav terpisah 24-bit 48kHz, mencakup 8 × SDI 2-channel embedded audio, 4 × analog audio input, dan hingga 32-channel MADI digital audio |
| Switching |
Program switching direkam sebagai DaVinci Resolve project .drp file |
| Media |
Seluruh media pool stills dan clips disimpan pada separate media folder |
| Media Format |
ExFAT (Windows/Mac), APFS atau HFS+ (Mac) |
| Multi View & Media |
| Multi View Monitoring |
1 × multi view melalui SDI dan HDMI, configurable menjadi 16, 13, 10, 7 atau 4 up views |
| Multi View Includes |
Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed dengan optional labels dan audio meters |
| Multi View Video Standard |
HD |
| Display Minimum Resolution |
1366 × 768 |
| Media Players |
2 |
| Channels |
Fill dan key untuk setiap Media Player |
| Media Pool Still Image Capacity |
20 |
| Media Pool Still Image Format |
PNG, TGA, BMP, GIF, JPEG dan TIFF |
| Media Pool Clip Capacity |
2 × hingga 1080p60 |
| Media Player Clip Length in 720 HD |
400 frames |
| Media Player Clip Length in 1080 HD |
200 frames |
| Media Pool Video File Format |
TGA sequence |
| Media Pool Audio File Format |
WAV, MP3 dan AIFF |
| Control & Software |
| Control Panel |
Integrated broadcast control panel dengan full control untuk switching dan settings |
| Software Control |
ATEM Software Control untuk Mac dan Windows, tersedia gratis |
| Software Updates |
Melalui USB atau Ethernet menggunakan ATEM Setup Utility |
| Configuration |
Sebagian besar konfigurasi switcher dilakukan melalui ATEM Software Control. IP address dapat diatur melalui ATEM Setup Utility dengan direct USB connection ke switcher. |

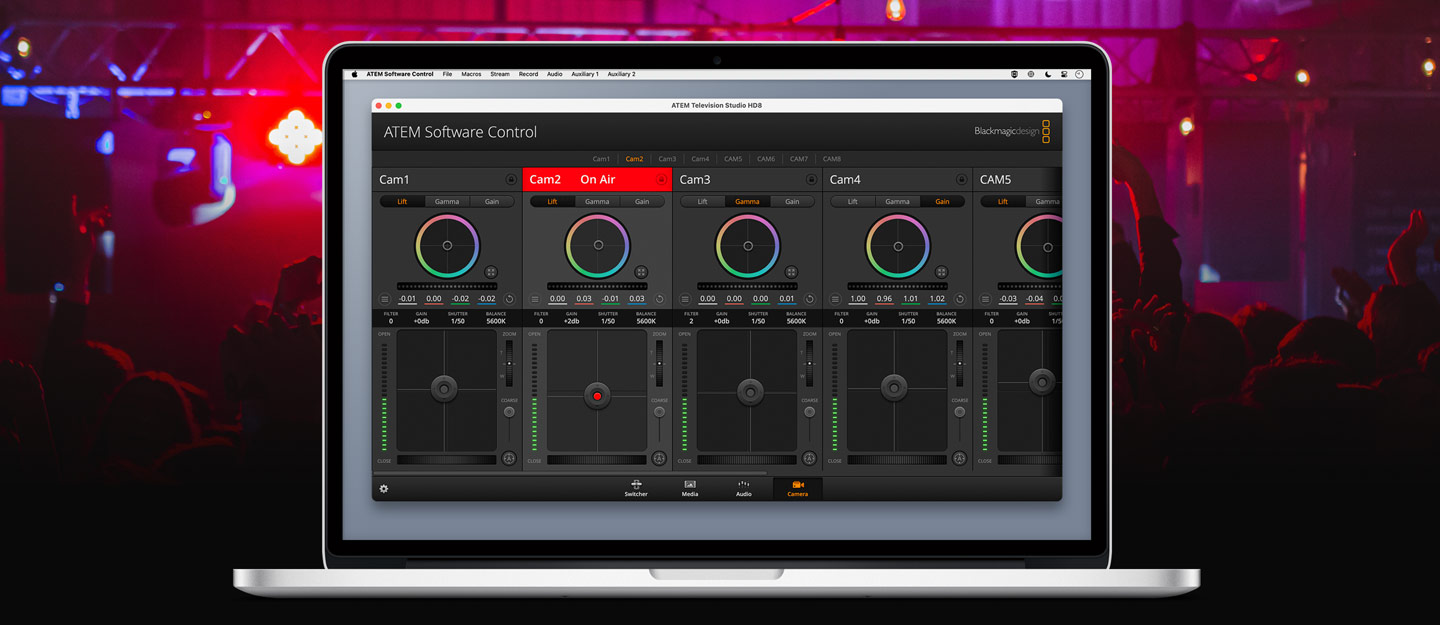

| Camera Control |
Kontrol focus, iris, zoom, gain, white balance, tint, shutter, ND filter, color corrector, tally dan record start/stop pada kamera Blackmagic Design yang kompatibel |
| Operating Systems |
macOS 14.0 Sonoma, macOS 15.0 Sequoia atau lebih baru; Windows 10 dan 11 |
| Fisik & Daya |
| Dimensi |
585.2 × 375.2 × 161.2 mm |
| Berat |
6.76 kg |
| Power Supply |
1 × internal 100–240V AC 50/60Hz dengan IEC C14 socket; 1 × 4-pin XLR 12V DC input untuk external power supply atau battery use |
| Power Usage |
100W max. |
| Physical Installation |
Desktop atau in-desk mount |
| Lingkungan |
| Suhu Pengoperasian |
0° C hingga 40° C |
| Suhu Penyimpanan |
-20° C hingga 60° C |
| Kelembapan Relatif |
0% hingga 90%, non-condensing |
