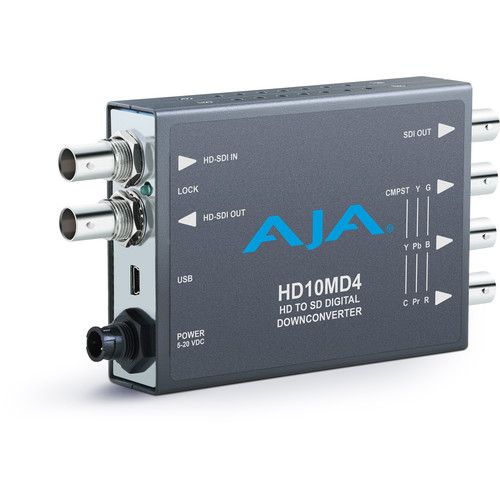

AJA HD10MD4: HD To SD Digital Downconverter
Fitur utama
Fitur utama
Only a few products that have the functionality to down-convert the HD-SDI video to standard definition SDI and analog component/composite video and that features can be found in this HD10MD4 Digital Down-Converter from AJA. The conversion in this product is using the best quality of full 10-bit data path and multi-point interpolation to produce a broadcast quality down-converted video.
With the Frame Rate Conversion feature, the HD10MD4 can converts the 1080p 23.98 or 1080psf 23.98 to the 59.94 output video using the standard 3:2 pulldown technique. The output signal can be formatted to 4:3 or 16:9 standard definition monitors. Not just for video, this device also supports for the audio and there are 4 channels of embedded HD-SDI audio that will be naturally passed to the SD-SDI output. To have the complete functionality, users can use the USB port to use the Free Mini-Config software, as such giving users a great graphical interface with detail information.
