Product Name

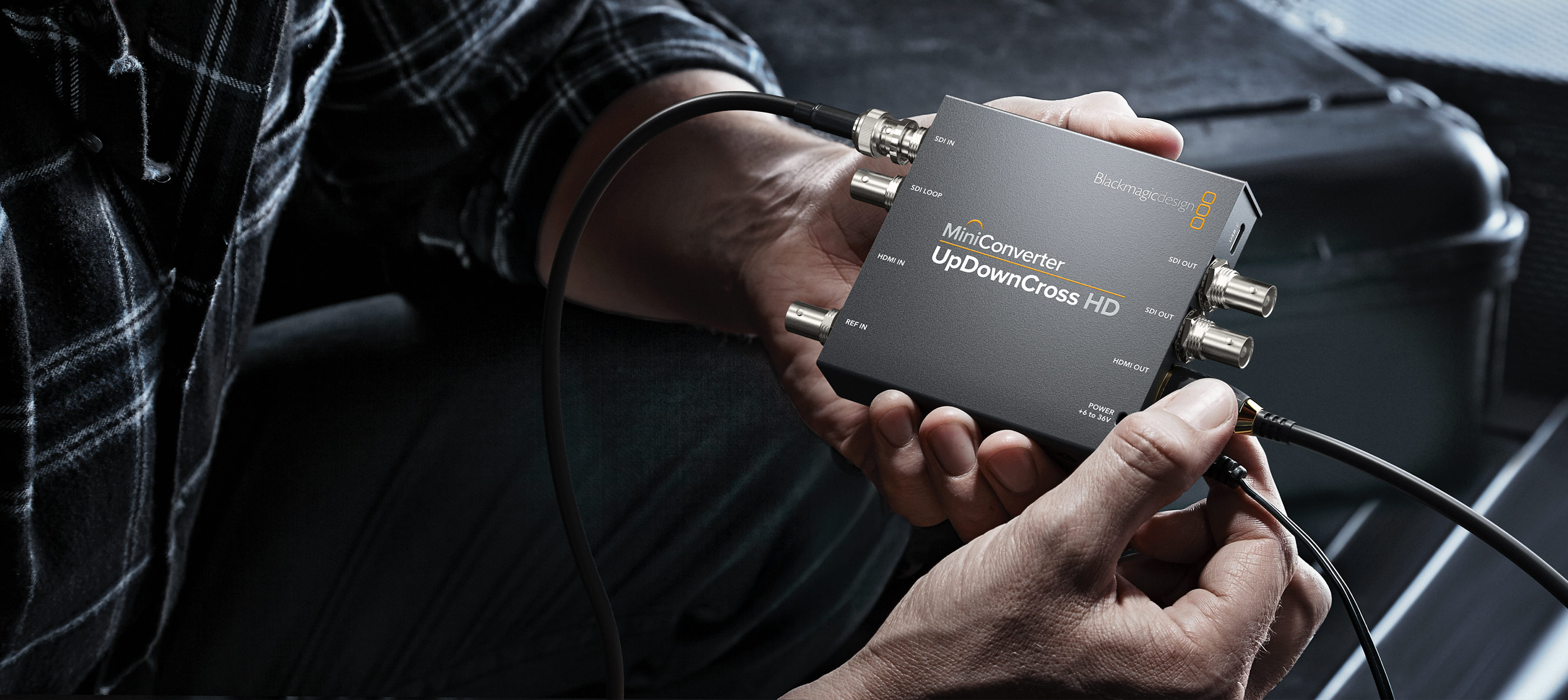

Blackmagic Design Mini Converter UpDownCross HD
Product Type
Professional Standards Converter
Primary Function
Up Conversion, Down Conversion and Cross Conversion between SD and HD video standards.
Video Processing
Teranex high-quality standards conversion processing.
Maximum Resolution
1080p60
SDI Video Input
1 x 3G-SDI (BNC)
SDI Video Output
1 x 3G-SDI (BNC)
HDMI Video Input
1 x HDMI Type-A
HDMI Video Output
1 x HDMI Type-A
Reference Input
1 x BNC Reference Input supporting Black Burst and Tri-Sync.
USB
USB Type-C for configuration and firmware updates.
SD Formats
525i59.94 NTSC, 625i50 PAL.
HD Formats
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60.
SDI Rates
270 Mb/s, 1.5G-SDI and 3G-SDI.
3G-SDI Support
Level A and Level B.
Automatic Detection
Automatic detection of SD, HD and 3G-SDI input formats.
Up Conversion
Converts SD signals to HD video formats.
Down Conversion
Converts HD signals to SD video formats.
Cross Conversion
Converts between HD formats with different resolutions and frame rates.
Aspect Ratio Conversion
Maintains correct aspect ratio during format conversion.
Scaling Engine
Teranex broadcast-quality scaling and image processing.
Processing Precision
10-bit video processing.
Color Sampling
4:2:2
SDI Reclocking
Supported.
Frame Synchronization
Built-in frame synchronization using external reference or internal synchronization.
Reference Standards
Black Burst and Tri-Level Sync.
Embedded Audio
Supports embedded SDI and HDMI audio.
Audio Delay
Automatic audio delay compensation for synchronized output.
Audio Synchronization
Audio remains synchronized with converted video.
Configuration Utility
Blackmagic Converter Utility.
Firmware Updates
Supported via USB Type-C.
Configuration
USB software control for converter settings and firmware management.
Power Supply
Universal 12V DC power supply with international socket adapters included.
Power Input
1 x Locking DC power connector.
Power Consumption
Approximately 4 Watts.
International Adapters
Multiple AC plug adapters included for worldwide operation.
macOS
macOS 14.0 Sonoma or later.
Windows
Windows 10 (64-bit) and Windows 11.
Configuration Software
Blackmagic Converter Utility.
Operating Temperature
0° to 40°C (32° to 104°F).
Storage Temperature
-20° to 60°C (-4° to 140°F).
Relative Humidity
0% to 90% non-condensing.
Dimensions
122 × 92 × 23 mm (4.8 × 3.6 × 0.9 in).
Weight
Approximately 245 g.
Housing
Durable precision-machined metal enclosure designed for continuous professional broadcast operation.
Installation
Compact standalone converter suitable for desktop, equipment rack shelves or permanent AV installations.
EMC Standards
Complies with international EMC regulations for professional broadcast equipment.
Electrical Safety
Designed to meet applicable international electrical safety standards.
RoHS Compliance
RoHS compliant.
Broadcast Television
Converts video standards between cameras, production switchers, routers, master control and playout systems.
Live Production
Ideal for concerts, sports production, live streaming, hybrid events and mobile production units.
Production Studio
Integrates equipment operating at different resolutions or frame rates without changing source settings.
Corporate AV
Suitable for auditoriums, conference rooms, command centers, education facilities and digital signage systems.
Post Production
Ensures compatibility between editing systems, monitoring equipment and professional video infrastructure.
Standards Conversion
Up conversion, down conversion and cross conversion in a single compact device.
Teranex Processing
Broadcast-quality image scaling and format conversion using Teranex processing algorithms.
Reference Synchronization
Supports external reference input with automatic frame synchronization.
Audio Synchronization
Automatic audio delay compensation maintains lip-sync after video processing.
Professional Connectivity
Simultaneous HDMI and 3G-SDI interfaces for seamless integration into broadcast and AV systems.
