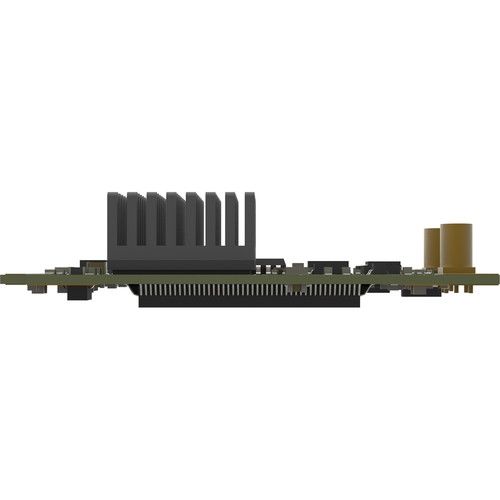

Magewell Pro Capture Mini SDI

Pro Capture Mini SDI SH Capture Card dari Magewell adalah mini PCIe add-on card yang memungkinkan untuk menangkap satu saluran loopback SD / HD / 3G-SDI dan SD / HD / 3G-SDI. Kartu ini mendukung ekstraksi SMPTE 352 payload identifier dan mampu melakukan berbagai fitur pemrosesan video, termasuk cropping, scaling, de-interlacing, aspect ratio conversion, color format conversion, video frame rate conversion, dan video OSD composition.

SDI Features

• Integrated cable equalizer supporting cable lengths up to 755' for HD signals
• Supports SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
• Supports 2K (2048 x 1080) mode
• Supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
• Supports 10/12-bit color depth
• Support for up to 8 (mono) audio channels at 48 kHz (channels 1 to 8 from the 16 available in the SDI spec)
• Supports extraction of audio formation information and channel status data
• Limited support of 3Gb-DS (only the first stream can be captured)
• Limited support for capture of the first link of dual link interfaces (YCbCr 4:2:2 10-bit 1080p 50/59.94/60 is captured as 1080i 50/59.94/60; YCbCr 4:4:4 10-bit is captured as 4:2:2; RGB 4:4:4: R/B sub-sampled)
